TOYOTA TP-8901-0 Relay Circuit Board

Product manual:

product overview
TOYOTA TP-8901-0 relay circuit board is an electrical control module used in industrial automation equipment,
The main function is to isolate and control high-power loads through relays.
This circuit board is typically installed in the automation units of Toyota production lines,
Used for performing switch control, signal switching, equipment start stop and other operations, with high reliability and durability.

Technical parameters (example, subject to actual version)

Relay type: Industrial grade electromagnetic relay

Control voltage: DC 12V/24V (depending on design)

Contact capacity: AC 250V/5A or DC 30V/5A (depending on model)

Input signal: trigger signal from PLC, control board or sensor

Isolation method: optocoupler isolation or electromagnetic isolation

Board: Industrial grade multi-layer PCB, flame retardant material

Working environment: -10 ℃~+55 ℃, anti-interference and anti vibration design

Application scenarios

Production line equipment control

Control the start and stop of actuators such as motors, pumps, valves, etc

Realize sequential switching and interlocking control of multiple workstations

Signal switching and allocation

Switching signals between different control systems

Convert weak current control signals into electrical signals that can drive loads

Security and Protection System

Control execution unit used for overload, overheating or fault protection

Cooperate with sensors to achieve automatic power-off or alarm function

industrial robot control

Implement power control and mode switching for end effectors

Cooperate with positioning and motion control systems to achieve automated operations

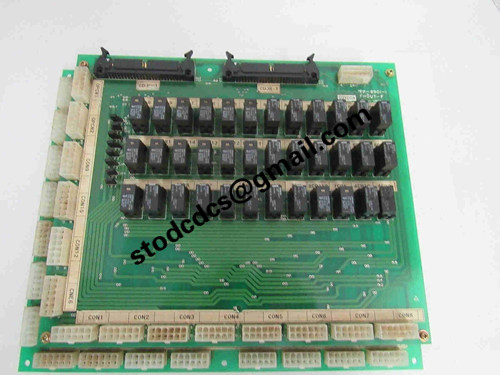

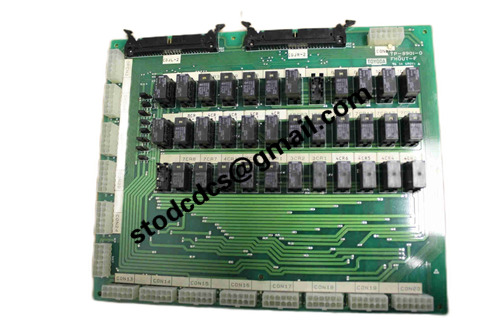

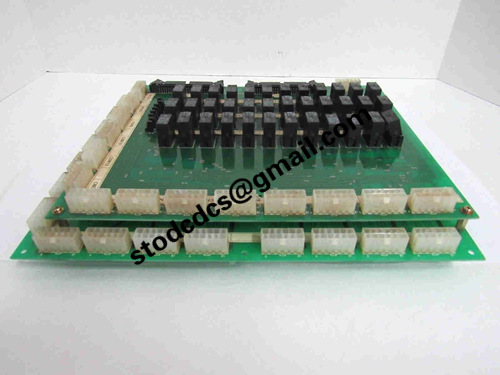

Product details picture:

TP-8901-0
