TOYOTA TP-8901-1 Circuit Board
Brand:TOYOTA
Model:TP-8901-1
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
TOYOTA TP-8901-1 Circuit Board
Product manual:
product overview
TOYOTA TP-8901-1 circuit board (model FHOUT-F TP-8901-1) is a relay output control module used in industrial automation equipment,
Usually used in conjunction with the TP-8900-0 (FHIN-F) input board, it forms the signal input/output core of CNC machine tools or automation control systems.
This board has the ability to output multiple relays, which are used to drive external actuators and achieve precise control of industrial equipment.
Technical Parameter
Model: TP-8901-1 (FHOUT-F)
Type: Relay output circuit board
Output channel: 36 relay outputs
Interface configuration: 15 12 pin female connectors+2 CDJR-1 interfaces
Installation method: Modular rack or slot installation
Applicable environment: Industrial site, with anti vibration and temperature difference resistance capabilities
Supporting use: Combined with TP-8900-0 input board to form a complete I/O system
Application scenarios
CNC machine tool
Control the external execution devices of the machine tool, such as hydraulic fixtures, cooling systems, lighting, signal indicators, etc.
Automated production line control
As the output module of the production line control system, it drives solenoid valves, relay groups, robotic arms, etc.
Industrial Control Cabinet
Integrated in the automation control cabinet, used as a centralized output control board.
Equipment maintenance and replacement
Used for repairing or upgrading old Toyota control systems, replacing faulty output boards, and extending equipment lifespan.
Product advantages
Strong output capability: Provides 36 relay outputs to meet the parallel control needs of multiple devices.
Rich interfaces: Multiple connector configurations for easy integration with different modules and peripheral devices.
Stable and reliable: Industrial grade design, suitable for long-term operation in automated production environments.
Good compatibility: seamlessly matched with Toyota series input boards and control systems.

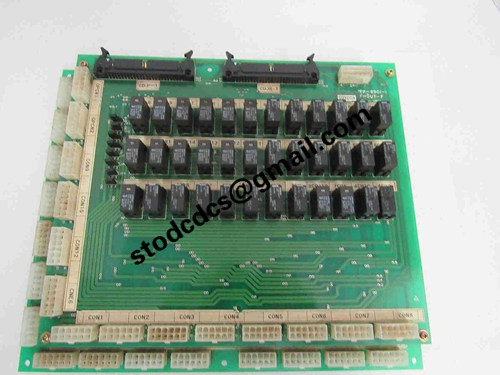

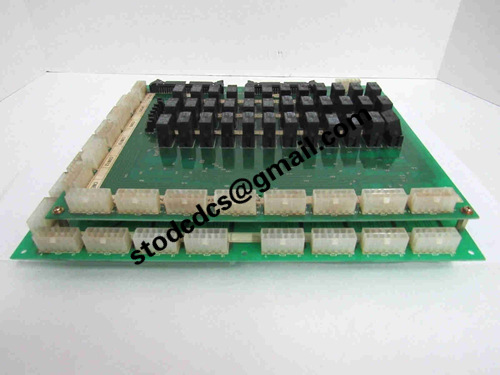

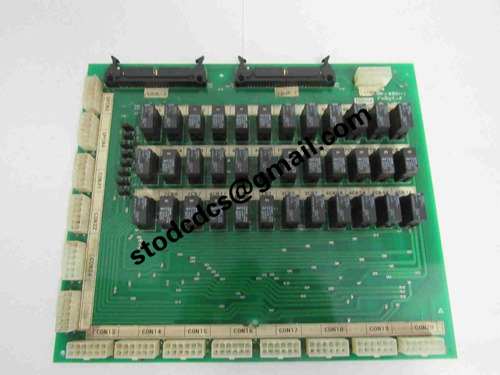

Product details picture:
TP-8901-1
