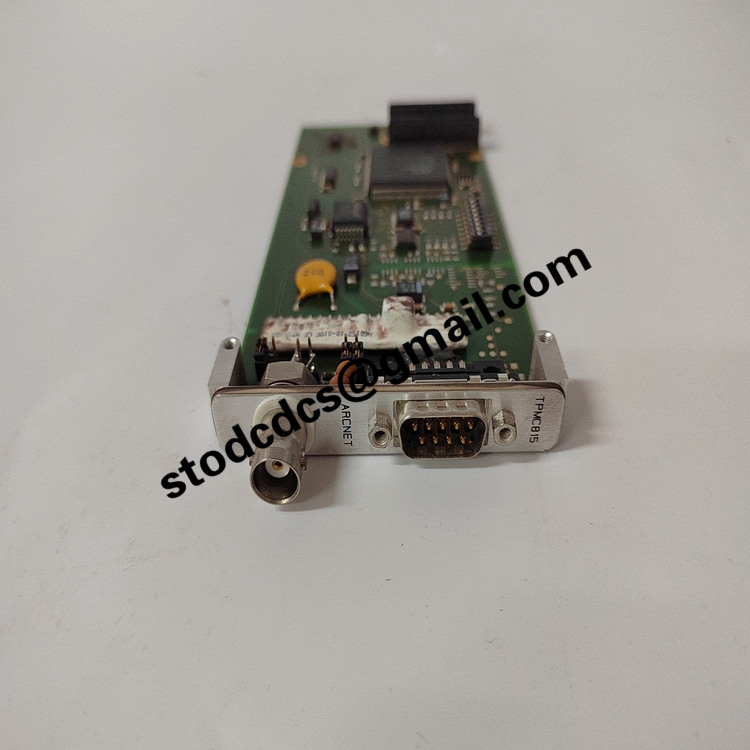

TPMC815-50 Printed Circuit Board

Model:TPMC815-50
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TPMC815-50 Printed Circuit Board

Product manual:

TPMC815-50 Printed Circuit Board
TPMC815-50 is a single width 32-bit PMC standard ARCNET communication module PCB launched by TEWS, designed to provide high-speed, isolated ARCNET network interfaces for industrial embedded systems.
Core Features (10 points)
Standard single width 32-bit PMC module, compatible with IEEE P1386.1 and PCI 2.1 bus specifications.
Based on COM20020 dedicated ARCNET controller, integrated transceiver and dual port RAM.
Supports 5 Mbps high-speed ARCNET token passing protocol with strong communication certainty.
Provide isolated RS485 differential drive interface, electrical isolation to enhance anti-interference capability.
Supports multiple ARCNET network topologies such as star, tree, and bus.
Onboard DC/DC isolated power supply, eliminating the need for external isolated power supply, simplifying system design.
Industrial grade wide temperature design, working temperature range of -40 ℃ to+85 ℃, suitable for harsh industrial control environments.
Built in comprehensive diagnostic functions for easy network status monitoring and troubleshooting.
Size 149mm × 74mm, standard PMC installation, compatible with VME, CompactPCI and other systems.
Specially designed for scenarios such as industrial automation, process control, vehicle and rail transportation.
Typical Applications
Industrial site ARCNET network access and data communication
Expansion of ARCNET interface for embedded industrial computer and VME system
Real time data transmission of rail transit and onboard control systems
Multi device ARCNET networking for factory automation production lines
Upgrading of old ARCNET equipment and replacement of spare parts
