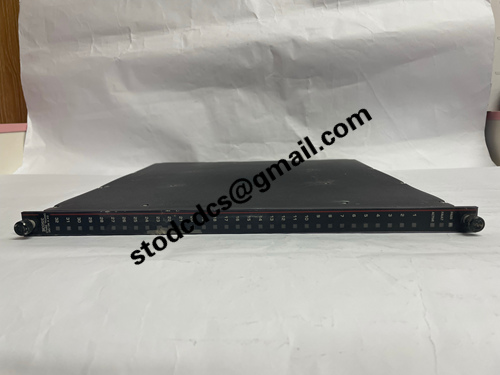

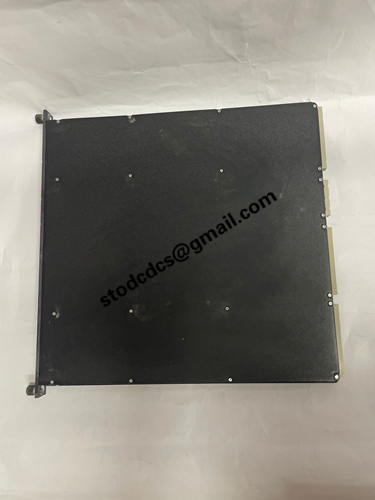

TRICONEX 3503E DC Digital Input Module

Brand:TRICONEX
Model:3503E
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TRICONEX 3503E DC Digital Input Module

Product manual:

TRICONEX 3503E DC Digital Input Module Product Features

Product Overview:
TRICONEX 3503E is a digital input module in the Tricon Safety System, used to collect on-site DC signals and transmit them to the main processor module for safety logic control and process monitoring.

Input type:

Supports DC digital input signals, typically 24V DC.

Can collect switch status, contact closure or disconnection signals.

Multi channel design:

Provide multiple independent input channels (typically 16 or 32 channels, please refer to the technical data sheet for specific models).

Each channel is independently isolated to prevent interference between channels and improve signal acquisition reliability.

The third mock examination Redundancy (TMR) architecture:

The module design complies with the Triconex TMR standard and achieves system fault tolerance through a voting mechanism.

Even if a single channel or module fails, the system can still maintain normal operation, improving overall safety.

Diagnostic and self checking functions:

Built in channel status monitoring and module health check.

Automatically isolate the faulty channel and alert the main processor in case of abnormality or malfunction.

Modular installation:

Can be inserted into the Triconex system rack, seamlessly collaborating with the main processor module, output module, and analysis module.

Support hot swappable maintenance to reduce system downtime.

Industrial environment adaptability:

It has the ability to resist electromagnetic interference, vibration, dust, and moisture, and can operate stably in complex industrial environments.

Security level and application:

Compliant with IEC 61508 SIL3 safety integrity standard, suitable for emergency shutdown (ESD) systems, process interlocks, and critical equipment protection.

Widely used in safety critical industrial systems such as petrochemicals, natural gas platforms, refineries, power plants, and offshore platforms.
