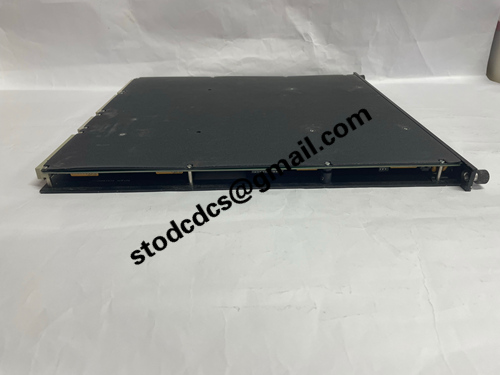

TRICONEX 3664 Digital Output Module

Brand:TRICONEX
Model:3664
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TRICONEX 3664 Digital Output Module

Product manual:

TRICONEX 3664 Digital Output Module Product Features:

Product Overview:
TRICONEX 3664 is a high reliability digital output module in the Tricon Safety System,
Used to control on-site equipment such as solenoid valves, relays, actuators, etc.
This module plays a critical role in Safety Instrumented Systems (SIS),
Widely used in process interlocking and emergency shutdown (ESD) control applications.

Triple Redundancy Architecture (TMR):
Adopt Tricon's unique Triple Modular Redundant architecture,
It contains three independent output channels internally, and fault-tolerant control is achieved through a voting mechanism to ensure that a single point of failure will not affect the system output.

Output channel design:

The module provides multi-channel digital outputs (typically 32 points)

Each output channel is equipped with optoelectronic isolation design, effectively preventing interference between channels

Output type supports relay or transistor output, which can directly drive on-site loads

Equipped with short-circuit and overload protection to enhance system reliability

High security level:
The module complies with the IEC 61508 SIL3 safety integrity level standard,
Satisfying stringent safety and reliability requirements, commonly used in critical process safety control systems.

Diagnostic and monitoring functions:
Equipped with a comprehensive self diagnosis and status monitoring mechanism, it can detect real-time output signal status, channel health status, hardware failures, and communication integrity.
If an abnormality is detected, the system automatically isolates the faulty channel and issues an alarm, without affecting the normal operation of other channels.

System communication:
The module communicates with the Main Processor through the backplane bus,
Perform signal synchronization and logic control to achieve high-speed data transmission and coordinated operations.

Hot swappable design:
Supports hot swapping, making maintenance more convenient and allowing for module replacement without shutting down, improving system availability.

Industrial grade reliability:
Using industrial grade components, it has strong resistance to electromagnetic interference, vibration, and dust, and can operate stably for a long time in harsh environments.

Power supply and power consumption:
Supports 24V DC power supply, with high output current capacity, capable of directly driving small and medium power loads.

Typical application areas:

Emergency Shutdown System (ESD) for Petrochemical and Natural Gas Plants

Safety Control in Refining and Chemical Processes

Power plant boiler protection and turbine control

Offshore platform, LNG terminal safety system

Core equipment interlocking control and alarm system
