TRICONEX AT-2701FX 843-000844-00 Network Interface Module
Brand:TRICONEX
Model: AT-2701FX 843-000844-00
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
TRICONEX AT-2701FX 843-000844-00 Network Interface Module
Product manual:
TRICONEX AT-2701FX (843-000844-00) Network Interface Module
1、 Basic Information
Model: AT-2701FX
Part number: 843-000844-00
Type: Industrial Ethernet Network Interface Card
Manufacturer: TRICONEX (under Schneider Electric)
Interface type: Fiber Ethernet interface, supporting 100Base FX (full duplex)
2、 Technical parameters
Interface speed: 100 Mbps
Interface standard: IEEE 802.3u 100Base FX
Interface type: SC fiber optic interface
Bus type: PCI (32-bit, 3.3V or 5V compatible)
Transmission medium: multimode optical fiber
Maximum transmission distance: 2 kilometers (typical)
Compatible system: Suitable for the TRICON control system (mainly used for the TRICON v9/v10 platform)
Working temperature range: 0 ℃ to 60 ℃
Storage temperature range: -40 ℃ to 85 ℃
Humidity range: 10% to 90% (without condensation)
3、 Functional purpose
Controller interconnection in Safety Instrumented System (SIS)
Real time data exchange between engineering workstations and control systems
Communication link of redundant system
4、 Reliability and Certification
Supports hot swapping
Compliant with CE and UL industrial certifications
Support for use in SIL3 security systems (according to IEC 61508 standard)

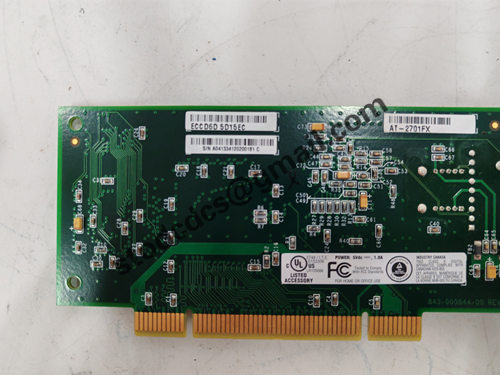

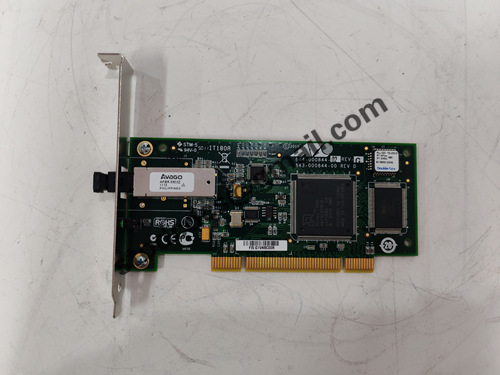

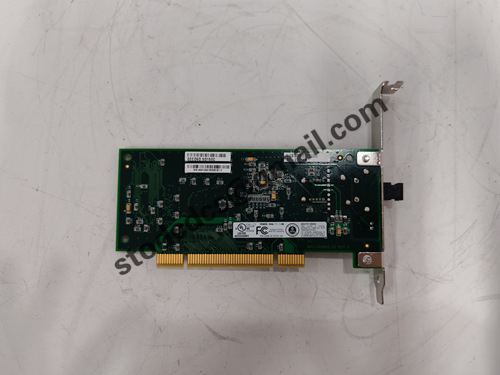

Product details picture:
