TRICONEX DI3301 Digital Input Module

Product manual:

Model: TRICONEX DI3301
Type: Digital Input Module

Product Introduction
Triconex DI3301 is a highly reliable digital input module designed for use in Triconex triple redundant safety systems. It is mainly responsible for collecting on-site switch signals and providing safety data acquisition function under a triple fault-tolerant architecture, widely used in industrial environments with extremely high safety requirements.

Core functions
Receive digital signals from on-site devices (such as dry contacts, limit switches, relay outputs, etc.)

Input the signal into the redundant processing system of the Tricon controller

Provide signal filtering, isolation, anti shake and other functions to improve signal quality

Support synchronous operation with other I/O modules to achieve safety control logic

Technical specifications (typical parameters, may vary slightly, please refer to the model version for details)
Number of input channels: 32 independent digital input channels

Input voltage range: 18-32 VDC (typical 24VDC)

Input current: Maximum 6 mA per channel

Channel isolation: Each input channel is isolated from the system bus

Redundant design: Each channel supports TMR (Triple Redundancy) input path

Response time: ≤ 5 ms (including filtering)

Diagnostic function: supports line monitoring, disconnection detection, short circuit detection, etc

Working temperature: -20 ° C~+60 ° C

Storage temperature: -40 ° C~+85 ° C

Humidity range: 5% -95% RH, no condensation

Structural characteristics
Installed in the Tricon universal rack, side by side with other modules

Cooperate with the terminal patch panel for wiring, facilitating installation and maintenance

Module hot swappable, supports online replacement, does not affect system operation

Each channel is equipped with LED indicator lights on the panel for status display

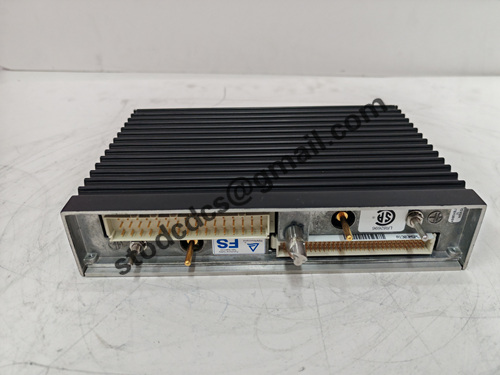

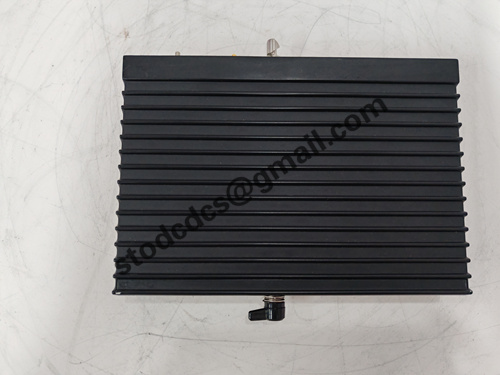

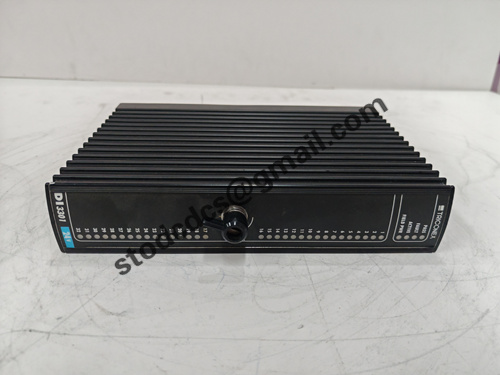

Product details picture:
