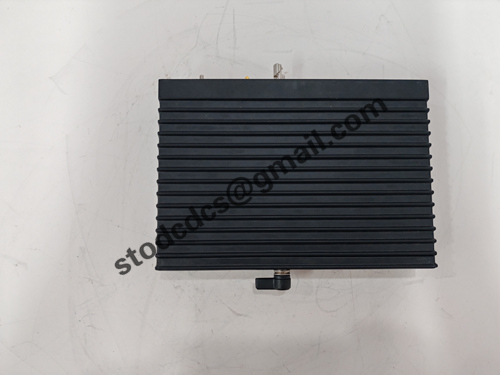

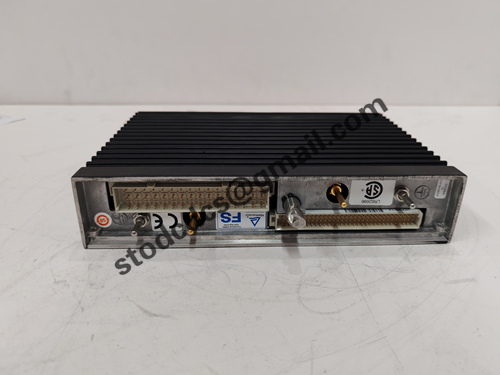

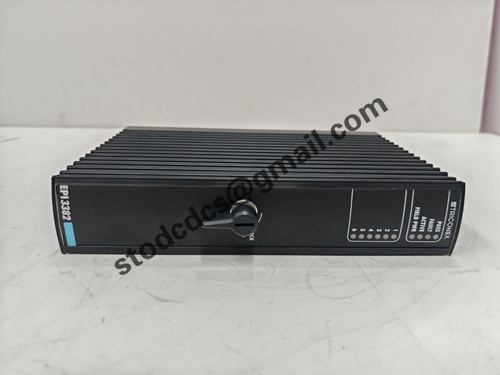

TRICONEX EPI3382 Communication Module

Brand:TRICONEX
Model:EPI3382
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TRICONEX EPI3382 Communication Module

Product manual:

TRICONEX EPI3382 is an enhanced communication module,
Mainly used for high-speed data communication between Triconex safety control system and upper computer or third-party system.
This module supports multiple industrial communication protocols and has high-performance processing capabilities and triple redundancy synchronization function,
It is a bridge for communication between distributed control systems (DCS), SCADA, historical databases, and Tricon controllers.

major function
Realize data exchange between Tricon controller and external systems

Support parallel operation of multiple communication ports

Capable of multi protocol data encapsulation and format conversion

Provide network isolation and fault redundancy transfer capability

Support collaborative operation of redundant peer-to-peer communication modules to improve system stability

Technical Parameter
Communication ports: Supports up to 2 10/100 Mbps Ethernet ports

Protocol support (based on configuration):

Modbus TCP/IP

Modbus RTU/ASCII (adaptation required)

TCP/UDP custom protocol

OPC (via server)

Internal processor: High performance embedded processor dedicated to data communication tasks

System integration: It can be used in conjunction with the main control architecture of the Tricon system and communicates through the system backplane

Module address recognition: automatic recognition and configuration, no need for manual jumpers

Status indication: The panel is equipped with communication status and module status LED indicators

Hot swappable function: supports online plugging and swapping of modules

Structural characteristics
Installation method: Insert into the designated slot of the Tricon system host rack

Wiring method: Standard RJ45 Ethernet interface

Isolation protection: There is electrical isolation between the communication interface and the system bus

Size: Standard Tricon module size, compatible with all main frame structures
