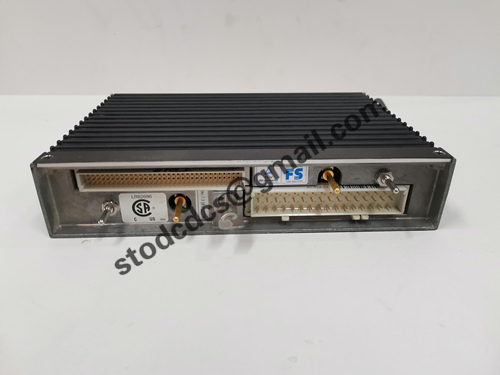

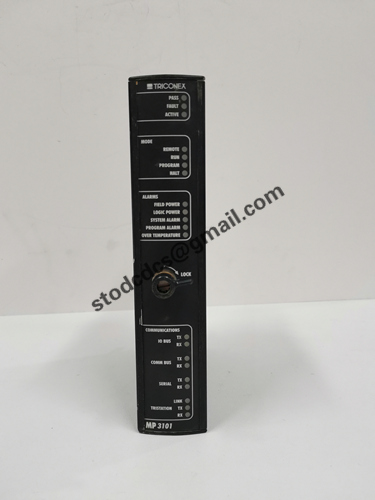

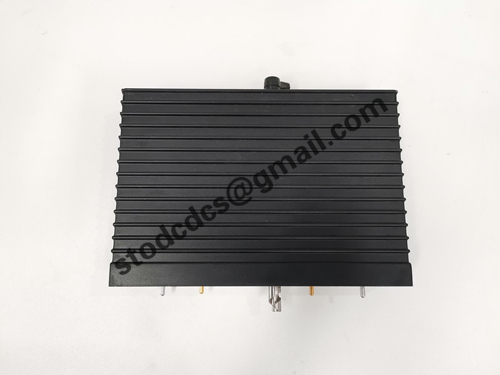

TRICONEX MP3101 main processor module
Brand:TRICONEX
Model:MP3101
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
TRICONEX MP3101 main processor module
Product manual:
The TriconeX MP3101 is a triple redundant safety control system main processor module that serves as the central control unit of the entire Tricon system, responsible for processing I/O module data,
[Key Technical Parameters]
Project parameter description
Triple Modular Redundancy (TMR) in processor architecture
Redundant type with three independent CPU channels and three running status comparators
High speed parallel processing ensures low latency and high reliability response
User logic program supports IEC 61131-3 standard languages (LD, FBD, ST, SFC)
Multi level program and data storage with memory capacity (see user manual for details), supporting user applications and diagnostic storage
Software supports TriStation 1131 (for programming, simulation, configuration, diagnosis)
System synchronization supports main control synchronization between multiple MP3101 (for redundant control or system expansion)
The communication function communicates with all I/O modules and can be connected to DCS/SCADA and other systems through the communication module
Redundant support: The main processor module can be configured as primary or backup, with automatic switching to ensure continuous operation
Installation method: Insert into the standard rack slot of the Tricon system
Online hot swappable support (replacement during system operation without power outage)
Environmental adaptability
Working temperature range: 0-60 ° C
Storage temperature range: -40 to 85 ° C
Seismic and anti-interference capability: compliant with international standards for industrial electrical equipment
Humidity range: 5-95% (no condensation)
[System Application Features]
✅ Support fault self detection and fault tolerance mechanism: can automatically isolate the faulty CPU and continue system operation
✅ Provide SIL3 security level: meets IEC 61508 and ANSI/ISA 84 standards
Compatible with all Tricon series modules (including DI3301, AO series, CM communication module, etc.)
✅ Support online change of control logic: the system does not interrupt or abort
✅ Provide comprehensive system diagnosis, event recording, and timestamp recording functions
