UNIOP ePAD03-0346 Operation Interface Module

Product manual:

1、 Product Name
UNIOP ePAD03-0346 Operation Interface Module

2、 Product Overview
EPAD03-0346 is equipped with a 3.4-inch color display screen (specific size depends on model details),
Combined with resistive touch or button operation, suitable for local control and monitoring of small automation equipment.
This module supports multiple industrial communication interfaces and is easy to integrate with PLCs and other controllers.

3、 Main technical parameters (typical)
Parameter item description
Display screen size approximately 3.4 inches TFT color LCD
The resolution is usually 320 × 240 pixels
Display color 65536 colors (16 bit true color)
Touch method: Resistive single point touch or physical button (depending on specific model)
High performance ARM series embedded processors
Storage capacity: Flash 64MB or more, RAM 32MB or more
Communication interfaces RS232, RS485 (supported by protocols such as Modbus RTU)
Power input 24V DC (allowable range is generally 18-30V)
Installation method: panel embedded installation, fixed with screws
Protection level IP65 (front panel protection)
Working temperature: 0 ℃~+50 ℃
The software platform supports UniOP Designer/JMobile Studio

4、 Functional Features
Color graphic display, supporting multilingual interface and dynamic icons

Alarm management, data recording, and recipe storage functions

Supports multiple industrial protocols and is compatible with multiple brands of PLCs

Program download and remote maintenance support

Compact design, suitable for small device operation interface requirements

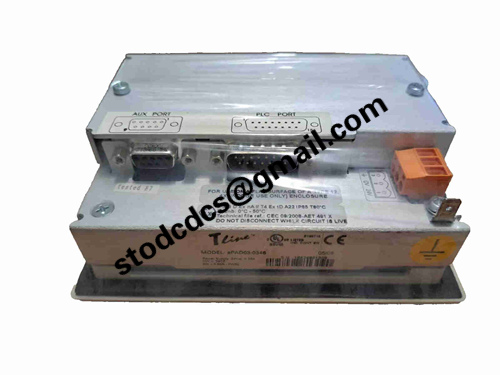

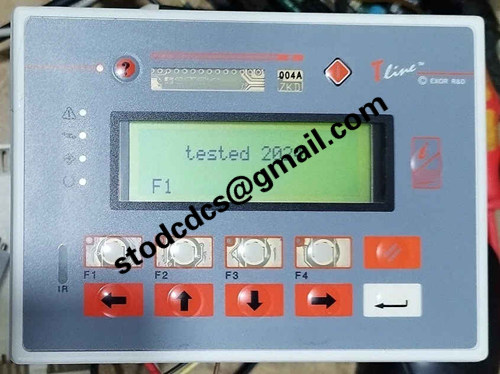

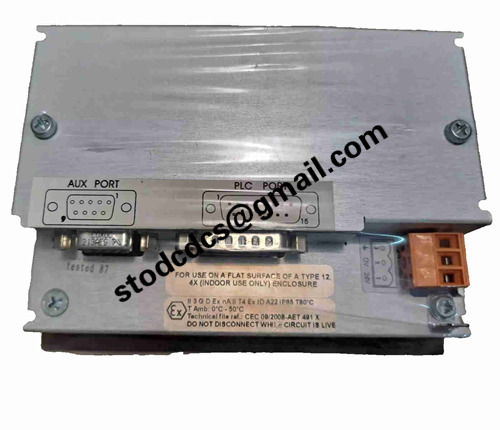

Product details picture:

ePAD03-0346
