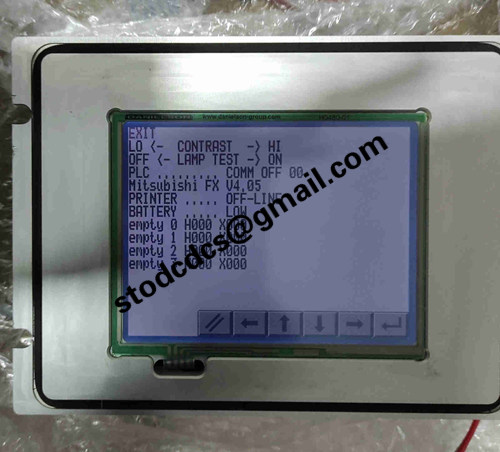

UNIOP ETOP05EB-DF45 Operation Panel

Brand:Uniop
Model:ETOP05EB-DF45
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

UNIOP ETOP05EB-DF45 Operation Panel

Product manual:

UniOP ETOP05EB-DF45 is an industrial grade touch screen operation panel launched by EXOR International,
Belonging to the UniOP eTOP series, it is widely used in automation control systems and is particularly suitable for the human-machine interaction needs of small and medium-sized devices.

The following is a detailed technical description without patterns:

1、 Product Name
UniOP ETOP05EB-DF45 Operation Panel

2、 Product Overview
ETOP05EB-DF45 is a compact 5.7-inch color touch control panel,
Integrating graphic display, touch operation, and multiple communication interfaces,
Suitable for local operations such as status display, parameter setting, alarm monitoring, etc. of on-site equipment in industrial automation environments.

3、 Technical parameters (typical configuration)
Project parameter description
Screen size 5.7-inch TFT color LCD
Resolution 320 × 240 pixels (QVGA)
Display color 65536 colors (16 bit)
Touch method: resistive single point touch
Backlight LED backlight, adjustable brightness
ARM series embedded processors
The typical storage configuration is 64MB Flash+32MB RAM (depending on version)
Communication interface RS232, RS485 serial port, some models include Ethernet interface
USB interface USB Host interface (for external data download/upload)
Power input 24V DC (allowable range 18-30V DC)
Protection level: IP65 front panel (embedded installation)
Working temperature: 0 ℃~+50 ℃
Installation method: panel embedded installation with screw clamp fixation
Software supports EXOR Designer or JMobile Studio
