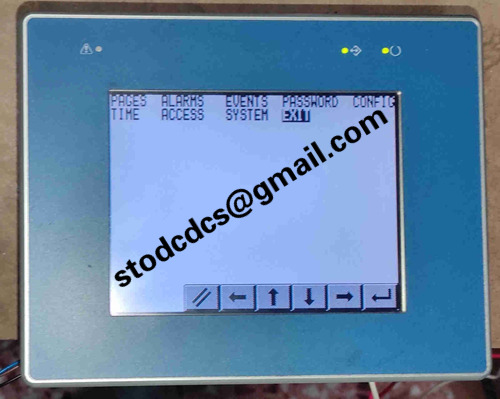

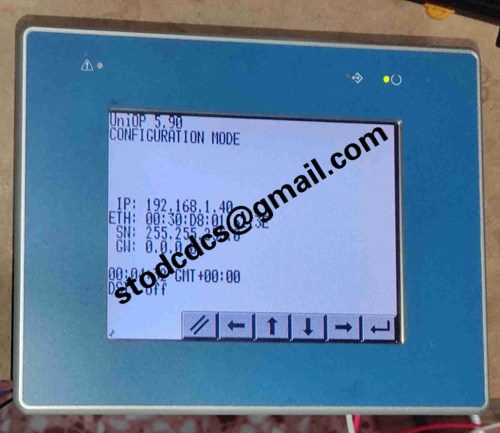

UNIOP ETOP06C-A050 operation interface panel

Brand:Uniop
Model:ETOP06C-A050
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

UNIOP ETOP06C-A050 operation interface panel

Product manual:

1、 Product Name
UniOP ETOP06C-A050 operation interface panel

2、 Product Overview
ETOP06C-A050 is a 5.7-inch color touch HMI with a compact structure,
Fully functional, suitable for industrial automation equipment with limited space.
This model supports mainstream communication protocols and can seamlessly integrate with various PLCs, drivers, and industrial control equipment.

3、 Main technical parameters (typical configuration)
Project parameter description
Display type 5.7-inch TFT color LCD display (LCD)
Resolution 320 × 240 pixels (QVGA)
Display color 65536 colors (16 bit)
Touch method: resistive single point touch
Backlight LED backlight, brightness adjustment function
High performance ARM series embedded processors
Typical storage capacity configuration: 64MB Flash+32MB RAM
Communication interface serial port: RS232, RS485; USB Host； Partial versions support Ethernet
Power input 24V DC (allowable input range 18~30V)
Front panel protection level IP65 (after panel installation and sealing)
Working environment temperature: 0 ℃~+50 ℃
Installation method: Embedded panel installation, fixed with square screws
The software development platform supports JMobile Studio or EXOR Designer

4、 Main functional features
Graphic operation interface: supports multi page switching, animation effects, status display, trend chart, graphic buttons, etc

Strong communication capability: supports multiple protocols such as Modbus RTU/TCP, Siemens S7, Mitsubishi, Omron, Allen Bradley, etc

Alarm and recipe function: supports real-time alarm display, event recording, and recipe parameter management

Remote maintenance: supports remote download, debugging, and maintenance through USB or network (some models support it)

Language support: Supports multi language switching and is suitable for deployment in multiple countries
