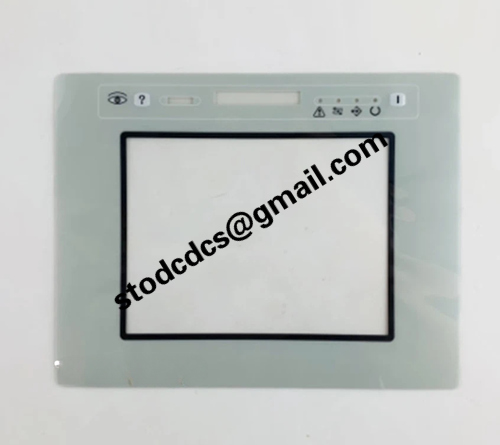

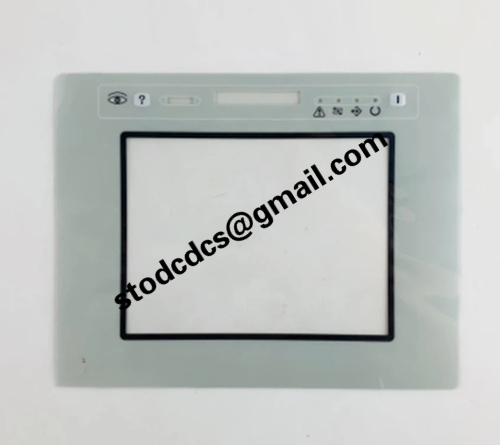

UNIOP eTOP10C-0050 Panel Glass

Brand:Uniop
Model:eTOP10C-0050
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

UNIOP eTOP10C-0050 Panel Glass

Product manual:

UniOP eTOP10C-0050 panel glass usually refers to the front panel glass or touch glass component of the human-machine interface (HMI) touch screen device of this model,
This is its important user interaction interface component. The following is a brief technical description without patterns:

1、 Product Name
UniOP eTOP10C-0050 Panel Glass (Touch Glass)

2、 Equipment Introduction
ETOP10C-0050 is a compact industrial touch screen operation panel from the EXOR UniOP series,
Equipped with color graphic display and resistive touch function, it is widely used in industrial automation equipment.

3、 Function and specification description of panel glass
Project parameter description
Panel type: Front facing resistive touch screen glass (including transparent protective layer)
Display area of approximately 5.7-inch window, corresponding to the main display screen of the device
Display screen paired with color TFT LCD (320 × 240 QVGA resolution)
Touch type: resistive single point touch (with conductive film, attached to LCD screen)
Material structure: transparent glass/acrylic front panel+ITO conductive film
Installation method: Embed the device front panel and fix it with screw clips or buckles
The protection level supports IP65 on the front (used in conjunction with sealing rings after assembly)
The usage environment is oil resistant, dust-proof, and resistant to light scratches, suitable for industrial operating environments
Replaceability: can be replaced separately (requires power-off disassembly), compatible with original model components

4、 Application Description
Panel glass is a direct interface for human-computer interaction, and damage can affect touch response and display visibility

Support purchasing original or compatible model panel glass components through EXOR or third-party channels

Replacement requires professional personnel to operate to prevent scratching the host or damaging the touch interface wiring
