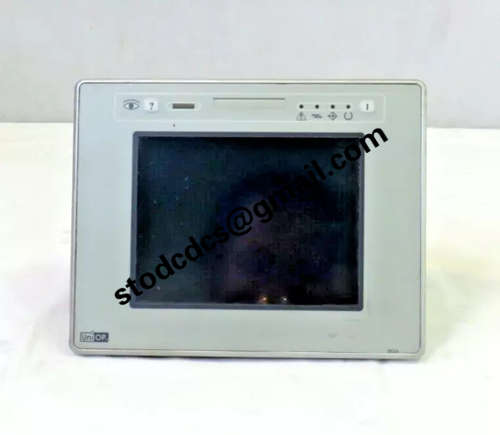

Uniop ETOP12 monitor panel screen

Brand:Uniop
Model:ETOP12
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Uniop ETOP12 monitor panel screen

Product manual:

1、 Product Name
UniOP ETOP12 Display Panel/Touch Screen

2、 Product Introduction
The ETOP12 series belongs to the 12 inch industrial touch screen human-machine interface of the UniOP eTOP series,
Widely used in automation control systems, panel screens are an important component,
Responsible for displaying graphical interfaces and accepting touch operations.

3、 Screen parameters and characteristics
Project parameter description
Screen size 12.1-inch TFT color LCD
Resolution 800 × 600 pixels (SVGA)
Display color 65536 colors (16 bit color depth)
Touch method: Resistive touch screen (single touch)
The display brightness depends on the specific model, usually 300 nits or higher
The typical contrast ratio is about 500:1
Panel type: multi-layer structural glass or acrylic with transparent touch layer
The protection level can reach IP65 after installation
Installation method: panel embedded installation, fixed with sealing ring

4、 Application Description
As the core display and touch unit of UniOP eTOP12 series HMI

Responsible for clearly displaying graphical user interfaces and accepting touch commands from operators

After damage, it can be replaced separately and needs to be matched with the corresponding model to ensure compatibility and performance

Capable of dust, water, and scratch resistance in industrial environments, suitable for harsh working conditions
