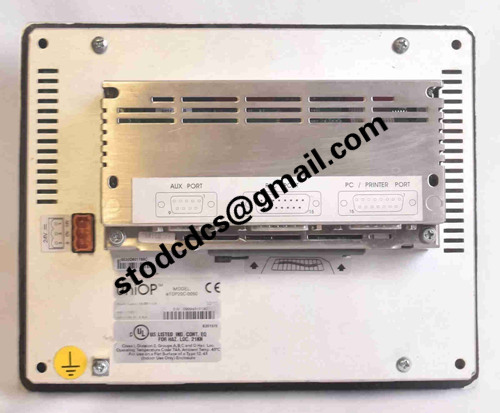

UniOP eTOP20C-0050 digital touch screen

Brand:Uniop
Model:eTOP20C-0050
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

UniOP eTOP20C-0050 digital touch screen

Product manual:

1、 Product Name
UniOP eTOP20C-0050 digital touch screen

2、 Product positioning and features
ETOP20C-0050 is a small-sized, highly integrated resistive touch screen panel suitable for automation systems with clear requirements for installation space, cost,

3、 Technical parameters (typical configuration)
Project parameter description
Display screen type TFT LCD color display screen
Screen size 4.3-inch WQVGA (480 × 272 pixels)
Display color 65536 true colors
Backlight type LED, adjustable brightness
Touch control method: resistive single point touch
CPU ARM Cortex-A8 (600MHz or higher)
Memory configuration: 128MB Flash, 64MB RAM
Real time clock (RTC) built-in, with battery backup
Communication interface 1 x RS232/RS485 multifunctional serial port, 1 x USB Host
Power input 24V DC (allowable range: 18~30V)
The protection level of the front panel is IP66, which can be dustproof and waterproof when installed properly
Working temperature range -10 ° C to+60 ° C
Installation method: Panel installation (embedded), equipped with metal fixing fixtures
Programming software supports JMobile Studio configuration and program development

4、 Functional Features
Graphic interface support

Can create multi page switching screens, dynamic icons, trend charts, alarm windows, etc

Support multi language interface display and switching

Support touch interaction logic, suitable for on-site device control

Wide support for communication protocols

Modbus RTU、Modbus TCP

Siemens S7 (MPI/Profinet, depending on configuration)

Allen Bradley (DF1, EtherNet/IP), Mitsubishi, Omron, etc

Extend support for multiple PLCs through JMobile driver library

Alarm, formula and data recording

Provide local alarm records and historical query functions

Support formula storage and switching, suitable for multi process systems
