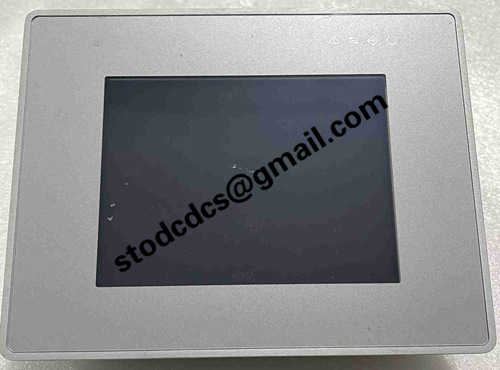

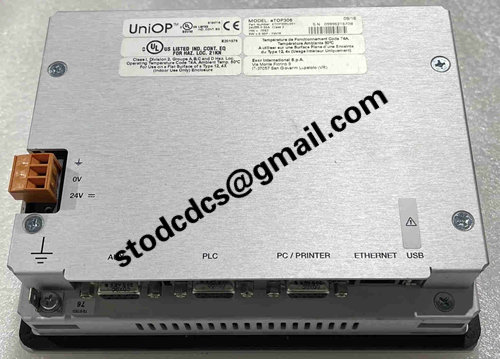

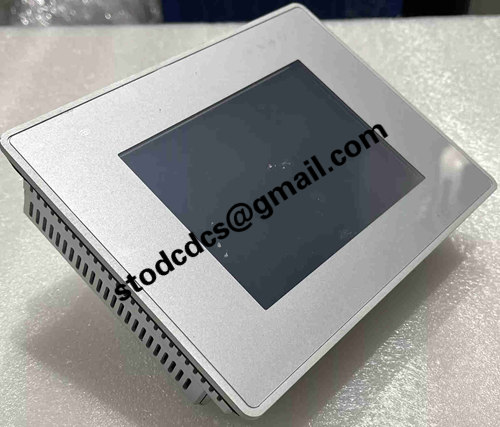

UniOP eTOP306 touch screen

Brand:Uniop
Model:eTOP306
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

UniOP eTOP306 touch screen

Product manual:

UniOP eTOP306 is a 6-inch industrial touch screen HMI (Human Machine Interface) launched by EXOR International in the UniOP series,
Used for operation, display, and monitoring tasks in embedded automation devices and industrial control systems.

The following is a detailed technical description of the product without patterns:

1、 Product Name
UniOP eTOP306 touch screen

2、 Product Overview
ETOP306 adopts a 5.7-inch (often referred to as 6-inch) TFT color LCD display screen and a resistive touch panel,
Having excellent graphic display capabilities and rich communication interfaces, suitable for OEM automation equipment
Industrial site operation requirements for control terminals, machine tools, packaging machinery, etc.

3、 Technical parameters (typical)
Project parameter description
Display screen size 5.7-inch TFT LCD color screen (often referred to as 6-inch)
Resolution 320 × 240 pixels (QVGA)
Display color 65536 colors (16 bit)
Touch Method: Resistive Single Point Touch
Backlight LED backlight, adjustable brightness
ARM or PowerPC architecture embedded processor (specific model depending on version)
Storage capacity Flash ≥ 32MB, RAM ≥ 16MB
Communication interfaces RS232, RS485, USB (some models), Ethernet (some models)
Power input 24V DC (input range 18-30V DC)
Panel protection level IP65 (front panel, embedded installation)
Working temperature range: 0 ℃~+50 ℃
The software platform supports UniOP Designer or JMobile Studio

4、 Main functional features
Graphic display support (dynamic charts, button controls, alarms, data curves)

Multi language interface support, suitable for international projects

Alarm display, recipe switching, data recording, event log management

Widely supported communication protocols: Modbus RTU, Siemens S7, Mitsubishi, Allen Bradley, etc

Can be accessed through serial port USB、 Ethernet for program download and maintenance (depending on model)

Industrial grade structural design, high reliability and good stability
