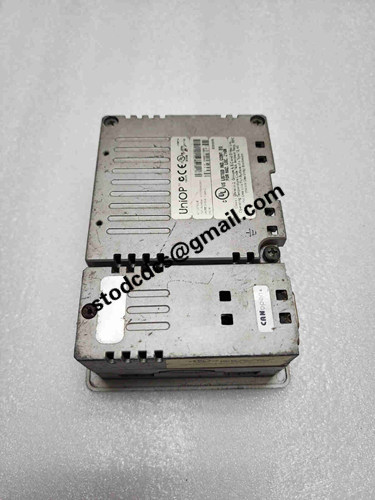

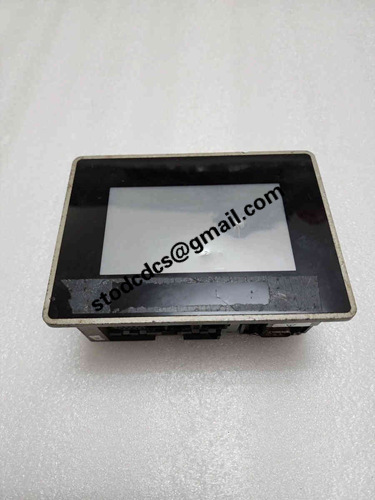

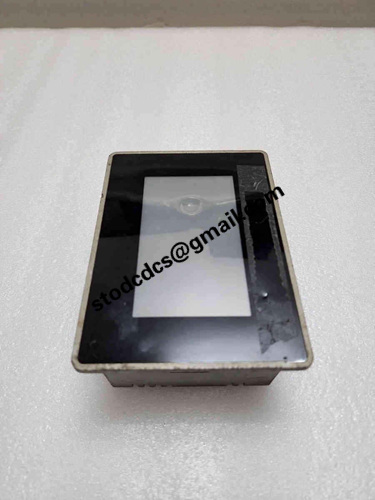

UNIOP ETOR504U3P1 operation panel

Brand:Uniop
Model: ETOR504U3P1
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

UNIOP ETOR504U3P1 operation panel

Product manual:

Introduction to UniOP ETOP504U3P1 Operation Panel

1、 Product Overview
ETOP504U3P1 is an industrial grade human-machine interface (HMI) control panel of the UniOP eTOP series,
Equipped with a 4.3-inch color widescreen display, supporting resistive touch function, suitable for various automation application scenarios.

2、 Main technical parameters

Display screen size: 4.3-inch TFT color LCD

Resolution: 480 × 272 pixels (16:9 widescreen)

Touch mode: resistive touch screen

Memory: 128MB Flash, 256MB RAM

Communication interface: RS-232, RS-422/485, dual Ethernet interface, USB master-slave port, SD card slot

Power input: 24V DC

Installation method: panel embedded

Software support: compatible with JMobile Studio platform, supporting graphical interface design, macro commands, alarms, trends, formulas, multilingual support and other functions

3、 Typical application areas

Industrial automation equipment control
Used for mechanical equipment, human-machine interface display, parameter adjustment, and alarm information monitoring.

Building and Energy Management System
Applied to the operation interface of systems such as air conditioning, elevators, and water pumps.

Process monitoring and data management
Provide functions such as historical data recording, trend analysis, and formula switching for easy operation and traceability.

Replace old models and repair purposes
Used as a replacement for early eTOP small-sized panels, suitable for upgrading and maintaining old devices.
