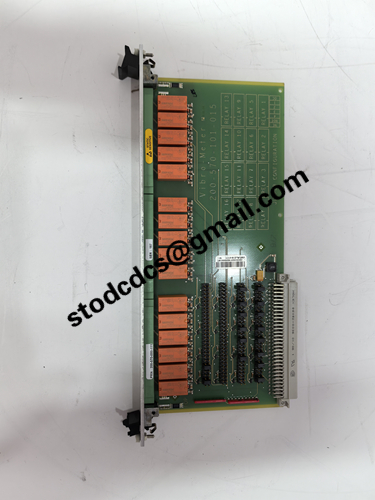

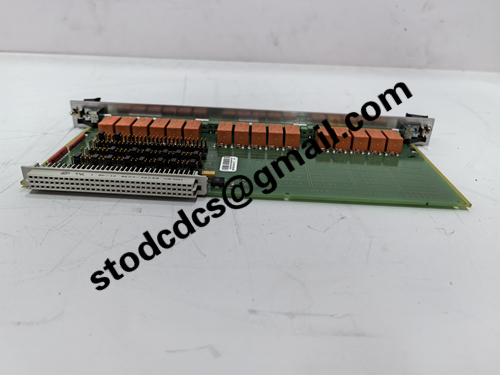

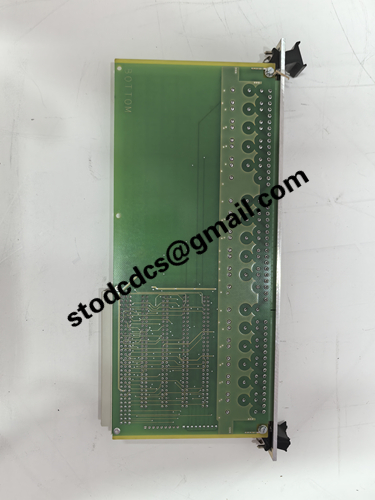

Vibro Meter 200-570-101-015 RLC16-V111 Printed Circuit Board

Brand:Vibro-Meter
Model:200-570-101-015 RLC16-V111
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Vibro Meter 200-570-101-015 RLC16-V111 Printed Circuit Board

Product manual:

1、 Product Overview
Vibro Meter 200-570-101-015 RLC16-V111 is an RLC16 series printed circuit board (PCB) used for machine condition monitoring and vibration protection systems.
It is commonly used in vibration measurement, alarm, and protection systems for industrial rotating equipment,
Function modules belonging to the Vibro Meter VM600 series or similar platforms.

This board card processes signals from accelerometers, velocity sensors, or displacement probes through multiple channels and performs filtering, shaping, measurement, and diagnostic operations.

2、 Product Model Description
Product Name: RLC16-V111 Printed Circuit Board

Order number (P/N): 200-570-101-015

Manufacturer: Vibro Meter (belonging to Meggitt Group)

Module series: RLC16 series (Relay Logic Card)

Version number: V111 (indicating the hardware revision version of the printed circuit board)

3、 Core functions and technical features
Functional project description
Signal processing can receive up to 16 channels of input signals (usually vibration or position sensor signals)
The logic control function provides programmable alarm/trip logic function for machine status response
The relay output is equipped with configurable relay outputs for alarm signals or system interlocking
Status indication provides LED indicators to display the current channel status or fault alarm
System integration can work in conjunction with other modules in the VM600 series, such as MPC4, IOC4T, CPUM, etc
Self diagnostic function with fault detection, module operation monitoring, and self diagnostic capabilities
The configuration method is to set module parameters through system software or rack jumpers
Hot swappable supports installation in standard Vibro Meter racks and supports live replacement (Hot Swap)
