VME-780RC VME-780RC-41000 350-930078074-4100 Single Board Computer

Product manual:

VME-780RC is an industrial grade single board computer (SBC) based on the VME bus, commonly used in embedded systems, industrial control, and automation equipment. It adopts a standard 6U VME card design, which can be directly inserted into the VME chassis backplane for high-speed communication with other modules.

Core Features

Processor: Based on Intel ® Pentium ® M mobile processor, supports multi-level caching, high processing performance, suitable for real-time computing and control tasks.

Memory and Storage: Supports DDR SDRAM memory, expandable to approximately 1.5 GB; provides a CompactFlash slot for system startup and data storage.

Network and I/O:

Dual Gigabit Ethernet interface or 10/100 Mbps Ethernet

Multiple serial ports (configurable as RS-232, RS-422, RS-485)

USB 2.0 interface

Optional graphic output interface (SVGA/DVI)

PMC expansion slot, capable of adding PCI-X module functionality

Operating system support: It can run VxWorks, QNX, Linux, Windows and other systems, depending on specific application requirements.

Industrial design: sturdy and durable, suitable for industrial environment requirements, high reliability.

Application scenarios

VME-780RC is commonly used in applications that require high performance and stability, such as:

Industrial automation equipment control

Process monitoring and data acquisition system

Instrument testing and measurement

Aerospace Signal Processing

Telecommunications or network embedded control equipment

It can assume the role of main control or data processing in the VME system, while providing rich interfaces for on-site device communication.

Overview of Working Principle

As a single board computer in the VME bus system, it can:

Manage the communication and coordination of other modules on the backplane

Execute real-time control tasks and data processing

Communicating with industrial equipment or sensors through integrated I/O

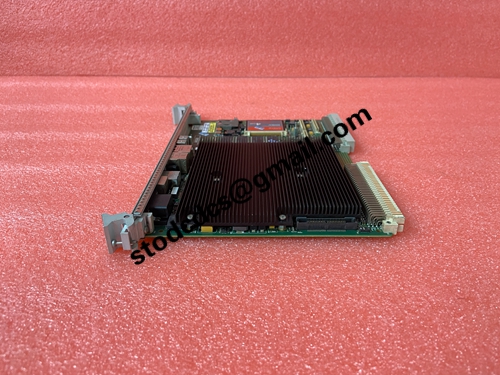

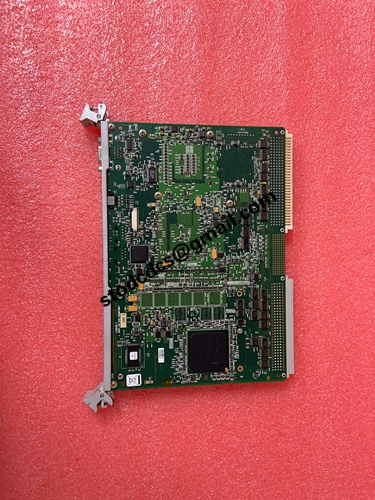

VME-780RC VME-780RC-41000 350-930078074-4100 Product details picture:

VME-780RC VME-780RC-41000 350-930078074-4100 product video
