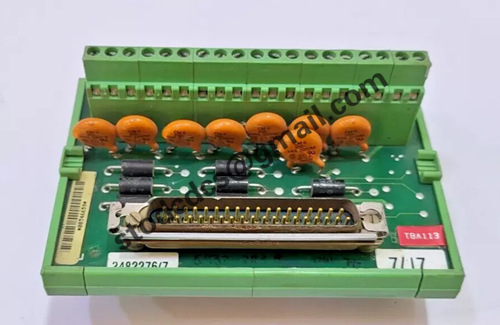

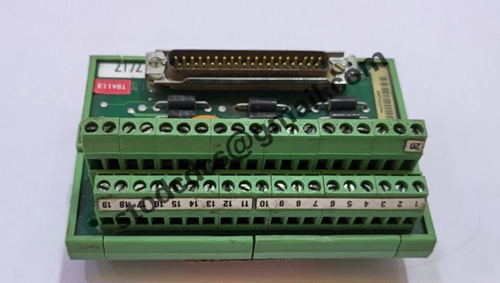

WOODWARD 5437-523 Controller Module

Brand:WOODWARD
Model:5437-523
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

WOODWARD 5437-523 Controller Module

Product manual:

The WOODWARD 5437-523 controller module is an industrial control module produced by Woodward, widely used in high reliability industrial applications such as generator control, engine management, gas turbine or steam turbine control.

1、 Product Overview
Product Model: 5437-523

Product type: Control Module

Brand: WOODWARD

Application areas: Generator control system, gas turbine control, steam turbine, distributed energy management system

2、 Main functions
Used for comprehensive control of power generation equipment or engines in conjunction with Woodward series control systems

Provide high-speed signal processing and execution capabilities

Usually used as the core processing unit or I/O module of control systems

Supports standard interfaces such as analog input/output, digital input/output, CAN communication, Modbus, etc. (depending on configuration)

High stability and anti-interference design, suitable for harsh industrial environments

3、 Typical technical parameters (based on Woodward universal controller module)
Parameter Project Description
Power supply voltage 18-32 VDC (usually 24V DC)
Analog input multiple channels (depending on the module), supporting 4-20mA, 0-5V, 0-10V, etc
Analog output supports 4-20mA, 0-10V signal output
Digital input/output multi-channel DI/DO, can be linked with external devices
Communication protocols Modbus RTU/TCP, CANopen, Ethernet TCP/IP
Working temperature -40 ° C to+70 ° C (industrial grade)
Installation method: panel or DIN rail installation
Certification standards comply with CE, UL, CSA industrial control standards

4、 Application scenarios
Automatic grid connection control system for generators

Generator synchronization and load distribution control

Automated management of power systems (diesel/gas turbines)

Distributed power generation (such as CHP, gas-fired power generation) control system

Power plant or offshore platform control system
