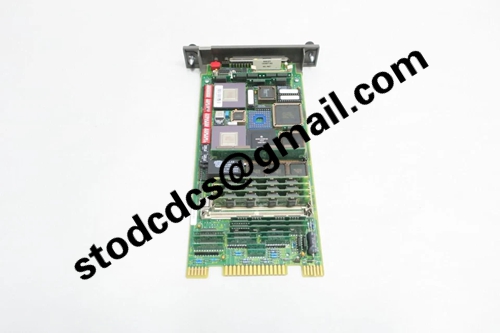

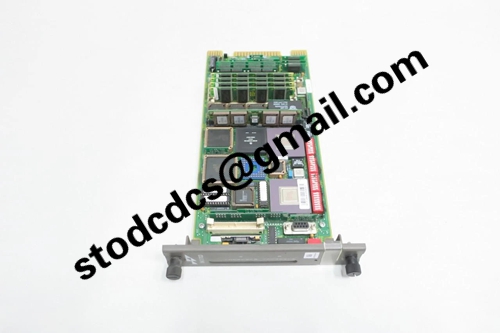

INIIT03 transmission module

Model:INIIT03
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

INIIT03 transmission module

Product manual:

INIIT03 transmission module
INIIT03 is a dedicated Infi Net network transmission module for ABB Bailey INFI 90/Symphony system, used to connect two local Infi Net communication loops, achieve cross loop data exchange and node database synchronization.
As the transmission hub from Infi Net to Infi Net, achieve message forwarding between dual loops
Holding a node database, responsible for cross ring data transmission and synchronization
Support the transmission of all types of messages, including exception reporting, configuration, control, and system status
Directly communicate with NIS modules in each loop, ensuring stable and reliable links
Single slot standard rack installation, occupying small space
Industrial grade design, suitable for installation scenarios inside control cabinets
Built in photoelectric isolation, strong anti electromagnetic interference capability
Support system time synchronization to ensure cross ring timing consistency
Nodes can run independently and can be started locally without manual intervention after power failure
Fast response speed, meeting real-time cross loop control requirements
The panel is equipped with 16 CPU LEDs and red green status lights, providing intuitive status
Comes with a stop/reset switch for easy on-site debugging and maintenance
Low power design, low heat generation, stable operation
Support hot swapping, module replacement does not affect system operation
Widely used for cross loop communication and linkage control in multi loop DCS systems
INIIT03, as the cross loop communication core of Infi Net network, ensures efficient and stable data exchange between multi loop systems, and is a key module for the expansion and interconnection of large-scale DCS systems.
