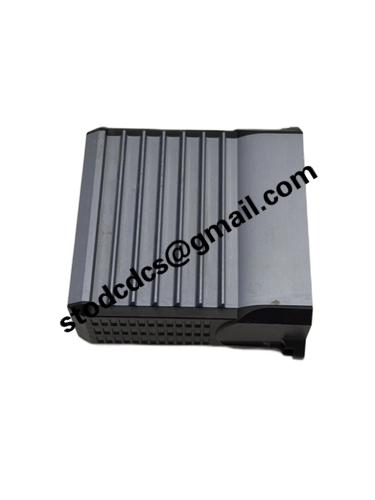

P0917GZ FBM240 Input/Output Module

Model:P0917GZ FBM240
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

P0917GZ FBM240 Input/Output Module

Product manual:

P0917GZ FBM240 is a Foxboro I/A Series Compact200 series 8-in 8-out isolated digital I/O module (redundant type) used for DCS field switch acquisition and control output.
Model: P0917GZ, corresponding to FBM240, digital I/O module.
Channel: 8 independent isolated digital inputs (15-60VDC voltage monitoring)+8 independent isolated relays/solid-state outputs.
Redundancy: Supports single/dual module hot redundancy, seamless automatic switching in case of failure.
Read back verification: Output built-in state read back, mark channel fault when instruction does not match actual state.
Output capability: Relay type 80-120VAC/10A, 80-125VDC/5A; Solid state type 15-60VDC/2A (with fuse).
Isolation: Channel to channel/ground ≥ 600V AC isolation, strong EMI resistance.
Bus: 2Mbps HDLC redundant A/B bus, compatible with I/A fieldbus.
Power supply: 24VDC (21-26V), maximum power consumption of a single module is 8.5W.
Temperature: -40 ℃~+60 ℃, G3 level anti-corrosion, suitable for harsh working conditions.
Size: Approximately 147 × 51.5 × 114mm, weighing 0.6kg.
Installation: DIN rail, supports hot swapping.
Protection: overcurrent, reverse connection, short circuit protection.
Fault safety: Supports outputting a safe state in case of power failure/malfunction (requires V1.40N+firmware).
Compatibility: I/A Series FCP controller and 200 Series FBM.
Certification: CE, UL, RoHS.
P0917GZ FBM240 is a key module for digital I/O in I/A systems, with redundancy and reliability, fully isolated channels, and output read back verification as its core.
