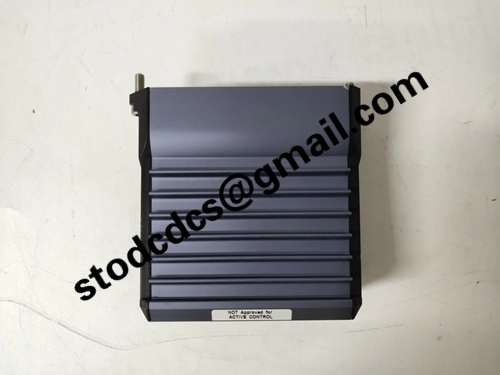

P0926TL FBM222 redundant Ethernet communication

Model:P0926TL FBM222
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

P0926TL FBM222 redundant Ethernet communication

Product manual:

P0926TL FBM222 redundant PROFIBUS communication module
P0926TL (FBM222) is a redundant PROFIBUS-DP/PA communication interface module for Foxboro I/A Series/Evo system, used to connect to on-site PROFIBUS slave devices.
Model: P0926TL, corresponding to FBM222, compatible with I/A Series and Evo platforms.
Interface: 2 independent PROFIBUS-DP channels, with RS-485 as the physical layer.
Protocol: Supports PROFIBUS-DP V0/V1, PA, compatible with Class 1/2 master station and multi master station configurations.
Capacity: A maximum of 31 slave stations can be connected to a single port without a relay, and a maximum of 125 slave stations can be connected to a relay. The maximum size of a single frame is 244 bytes.
Baud rate: The software can select 9.6k~12Mbps, with a maximum network segment length of 100~1200m.
Isolation: Electrical isolation between channels ≥ 600V AC, resistant to on-site interference.
Redundancy: Supports dual module hot redundancy, seamless switching between master and slave, with no data loss.
Power supply: 24VDC redundant input, maximum power consumption of 6W.
Working temperature: -20 ℃~+70 ℃, suitable for G3 level harsh environments.
Size: 102 × 45 × 104mm, weighing approximately 284g.
Installation: Standard FBM base plate, DIN rail or 19 inch rack installation.
Status: LED displays power, redundant roles, and port communication status.
Compatibility: Supports FBM223 TA and cables, and can be directly upgraded to FBM223.
Certification: CE, UL, ATEX Zone 2, Class I Div 2.
Application: Chemical, power, petrochemical DCS connected to frequency converters PLC、 PROFIBUS devices such as instruments.
P0926TL FBM222 is a key module for integrating PROFIBUS field devices into I/A systems, with dual isolation, redundant hot standby, and high capacity as its core.
