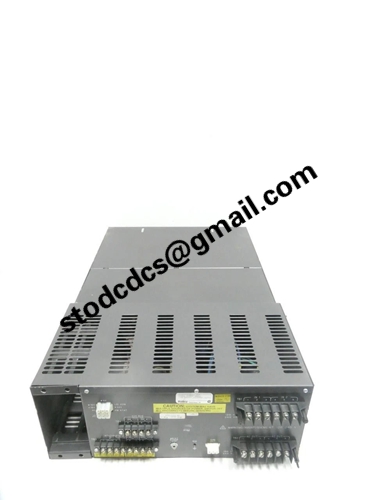

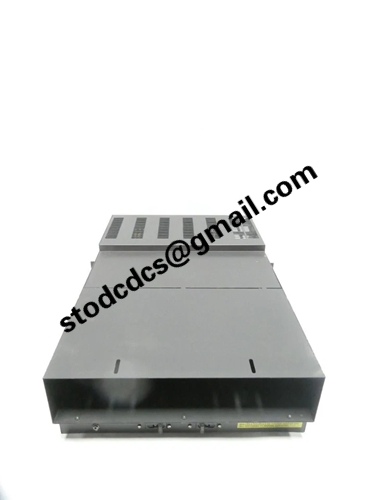

IEPEP03 power input panel

Model:IEPEP03
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

IEPEP03 power input panel

Product manual:

IEPEP03 is a redundant AC power input panel of ABB Bailey Infi90/Symphony Harmony series, which serves as the system power inlet and is responsible for mains power access, redundant switching, and status monitoring.
Positioning: Infi90 system core power inlet, providing redundant AC power access, distribution, and status monitoring.
Input specifications: 120/240VAC adaptive, 50/60Hz, supports dual redundant mains input.
Core function: Integrate AC transmission module and bus monitoring module to achieve dual automatic switching and power failure interruption (PFI) signal output.
Protection capability: Built in surge protection, optional overcurrent/short-circuit protection and circuit breaker to enhance system safety.
Status monitoring: Supports input voltage monitoring, fault alarm output, and intuitive feedback of power supply status.
Structural adaptation: Standard Infi90 cabinet modular design seamlessly integrates with IEPAS series power modules.
Output allocation: Allocate stable redundant power to the system bus for use by modules such as IEPAS02/IEPDF02.
Industrial grade design: Operating temperature range of 0-55 ℃, suitable for harsh environments such as power plants, petrochemicals, metallurgy, etc.
Maintenance friendly: Supports online maintenance to reduce the risk of system downtime.
Supporting module: It needs to be used in conjunction with AC transmission and bus monitoring module (excluding cables).
Model positioning: higher than IEPEP01/02, with complete redundancy and monitoring capabilities, suitable for critical scenarios.
Typical applications: DCS core power supply inlet for large-scale process automation in power, chemical, oil and gas industries.
Physical specifications: Dimensions are approximately 432 × 584 × 439mm, weight is approximately 17.2kg, and the structure is stable.
Alternative models: Compatible with IEPEP03R, PIEEP03 and other derivative versions, easy to maintain and replace.
IEPEP03 has become the first line of defense for Infi90 system power supply safety with redundant switching, comprehensive protection, and status monitoring.
