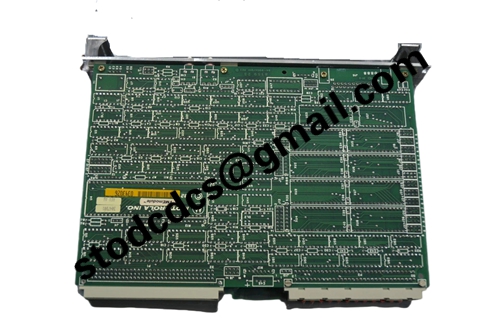

MVME110-1 Single Board Computer

Model:MVME110-1
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

MVME110-1 Single Board Computer

Product manual:

MVME110-1 Single Board Computer
MVME110-1 is a VME bus 16 bit single board computer launched by Motorola (later merged into Emerson), based on the MC68000 series processor, aimed at embedded real-time control and industrial automation scenarios.
Processor: MC68000 (8MHz), 16 bit architecture, optional MC68010 for some versions.
Bus: Standard VME bus, supports master/slave mode, compatible with VME chassis expansion.
Memory: Onboard 8 memory sockets, supporting 2KB-32KB RAM/ROM/EPROM, standard 256KB, expandable to 2MB.
Serial port: 1 RS-232C serial communication port, used for debugging and interacting with peripherals.
Timer: 3 programmable 16 bit counters/timers, supporting timing and pulse counting.
Status indicator: RUN, HALT, FAIL three color LED, visually displaying running/pause/fault status.
Operation buttons: RESET (system reset), ABORT (interrupt current operation) buttons for easy debugging and maintenance.
Power supply: VME backplane power supply, 5VDC ± 12VDC, power consumption of about 5W.
Environment: Working temperature of 0 ℃ -50 ℃, humidity of 5% -95% (no condensation), industrial grade stability.
Interface: including I/O channel interface, parallel printing port, suitable for connecting terminals and peripherals.
Firmware: Built in diagnostic and debugging firmware, supporting board level self-test and fault location.
Size: Standard VME single slot size, compatible with standard VME chassis installation.
Application: Embedded real-time systems for industrial control, aerospace, medical equipment, testing and measurement, etc.
Version: MVME110-1 is the basic version, with subsequent upgraded models such as -2/-3 to increase clock speed and memory capacity.
Reliability: Industrial grade components that support long-term continuous operation and are suitable for harsh industrial environments.
MVME110-1 has become a classic SBC solution for early industrial embedded control due to its compact VME architecture, stable 16 bit computing, and rich I/O.
